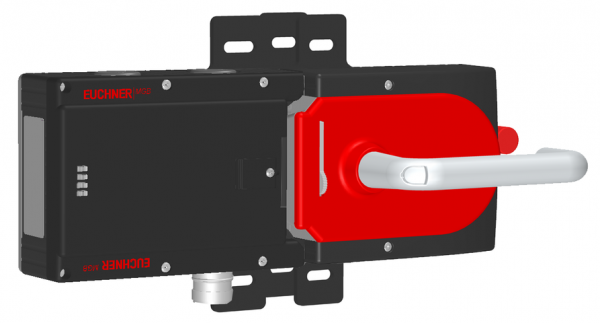

Euchner 112601E | MGB-L1HE-APA-R-112601 : Multifunctional Gate Box Complete
The Multifunctional Gate Box Complete provides versatile functionality for gate management in various applications.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 30 V |
Connection Type: | Plug connector RC18(X6) |
Installation Orientation: | Door hinge DIN right |
Degree of protection: | IP65 |
Item designation: | MGB-L1HE-APA-R-112601 |
Gross weight: | 4,712kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Risk time according to EN 60947-5-3: | max. 350 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Test Pulse Duration: | max. 0.3 ms |
Test Pulse Interval: | min. 100 ms |
Switching frequency: | 0.25 Hz |
Additional feature: | Mounting plate |
Product version number: | V4.0.0 |
Occupancy diagram: | L0 |
Rated impulse withstand voltage Uimp: | 1.5 kV |
Transponder coding: | Unicode |
Locking force FZh: | 2000 N |
Guard locking principle: | Closed-circuit current principle |
Product Number | Variant Description |
---|---|
MGB-L1HE-APA-R-112601 : Multifunctional Gate Box Complete | (No others) |
