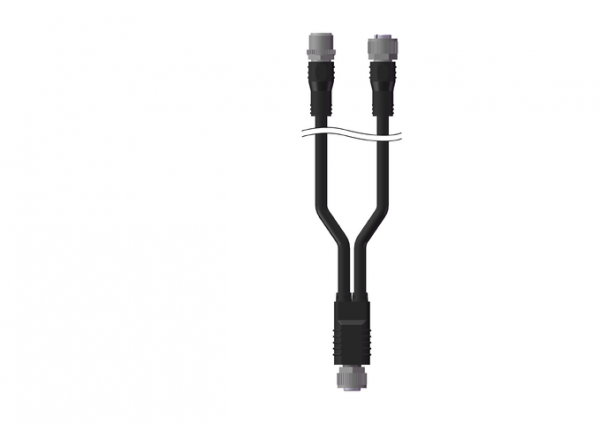

Euchner 112395E | AC-YD-V1,0-SBB-112395 : Y-Distributor M12-1000
The AC-YD-V1,0-SBB-112395 is a Y-distributor designed for M12 connectors, facilitating efficient and reliable connections in various applications.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 300 V |
| Rated impulse voltage Uimp: | 0.8 kV |
| Connection Type: | Male plug |
| Degree of protection: | IP65/IP67(Only in the screwed tight state with the relating mating components) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | AC-YD-V1,0-SBB-112395 |
| Gross weight: | 0,113kg |
| Rated voltage: | 30 V |
| Contact Resistance: | ?5 m? |
| Type Specification: | DIN EN 61076-2-101 |
| Cable Outlet: | straight |
| Number of pins: | 5 |
| Plug lock: | Screw terminal |
| Insertion Cycles: | 100 |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Sheath Color: | black |
| Product Number | Variant Description |
|---|---|
| AC-YD-V1,0-SBB-112395 : Y-Distributor M12-1000 | AC-YD-V1,0-SBB-158193 : |
