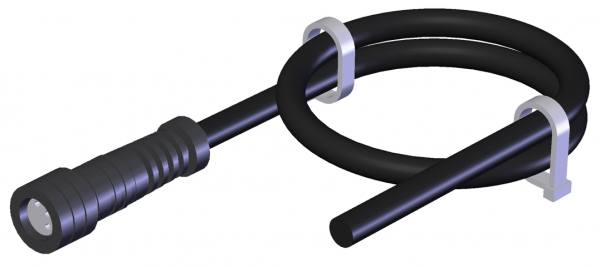

Euchner 112217E | SGLF3-5000P : Connector
The SGLF3-5000P is a reliable connector designed for various wiring applications, ensuring secure electrical connections.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67/IP69K(only in the screwed tight state with the relating mating components) |
| Item designation: | SGLF3-5000P |
| Gross weight: | 0,15kg |
| Rated voltage: | 63 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 3 |
| Plug lock: | Screw connection |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -25 … +80 °C |
| Cable ambient temperature (static): | -40 … +80 °C |
| Test voltage: | 1.5 kV(eff./60s) |
| Cable length: | 5 m |
| Conductor Cross-section: | 0.34 mm² |
| Number of conductors: | 3 |
| Cable Type: | straight |
| Drag chain suitability: | yes |
| Conductor End: | trimmed smooth |
| Product Number | Variant Description |
|---|---|
| SGLF3-5000P : Connector | (No others) |
