| Rated insulation voltage Ui: |
30 V |
| Connection Type: |
Plug connector RC18(X6) |
| Installation Orientation: |
Door hinge DIN right |
| Degree of protection: |
IP65 |
| Ambient temperature: |
-20 … +55 °C |
| Item designation: |

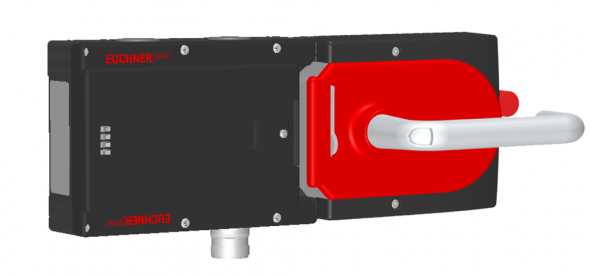

MGB-L1HE-ARA-R-111940 |
| Gross weight: |
3,038kg |
| ECLASS: |
27-27-24-05 Safety-related transponder switch with guardlocking |
| Risk time according to EN 60947-5-3: |
max. 350 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: |
max. 5 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Test Pulse Duration: |
max. 1 ms |
| Test Pulse Interval: |
min. 100 ms |
| Switching frequency: |
0.25 Hz |
| Additional feature: |
with automatic lockout mechanism |
| Product version number: |
V3.0.0 |
| Occupancy diagram: |
L0 |
| Rated impulse withstand voltage Uimp: |
1.5 kV |
| Transponder coding: |
Unicode |
| Locking force FZh: |
2000 N |
| Guard locking principle: |
Closed-circuit current principle |
