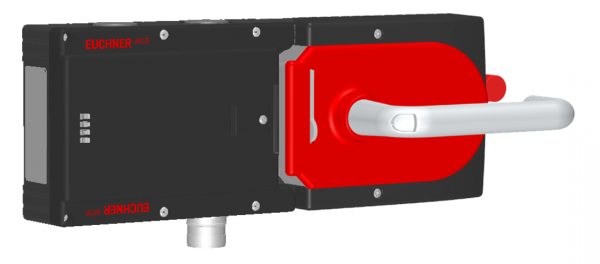

Euchner 111938E | MGB-L0HE-ARA-R-111938 : Multifunctional Gate Box Complete

The MGB-L0HE-ARA-R-111938 is a complete multifunctional gate box designed for durability and ease of use in automated gate systems.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 30 V
    Connection Type: Plug connector RC18(X6)
    Installation Orientation: Door hinge DIN right
    Degree of protection: IP65
    Ambient temperature: -20 … +55 °C
    Item designation: MGB-L0HE-ARA-R-111938
    Gross weight: 2,846kg
    ECLASS: 27-27-24-03 Safety-related transponder switch
    Risk time according to EN 60947-5-3: max. 350 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 5 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 1 ms
    Test Pulse Interval: min. 100 ms
    Switching frequency: 0.25 Hz
    Additional feature: with automatic lockout mechanism
    Product version number: V3.0.0
    Occupancy diagram: L0
    Rated impulse withstand voltage Uimp: 1.5 kV
    Transponder coding: Unicode
    Product Number Variant Description
    MGB-L0HE-ARA-R-111938 : Multifunctional Gate Box Complete (No others)
