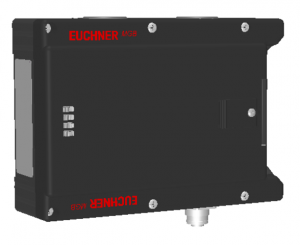

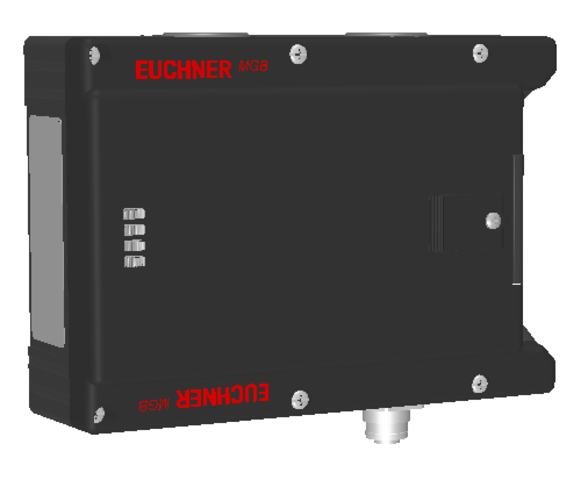

Euchner 111521E | MGB-L1-ARA-AA1A1-S4-R-111521 : Multifunctional Gate Box Locking M.

The MGB-L1-ARA-AA1A1-S4-R-111521 is a multifunctional gate box locking module designed to enhance safety and access control.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 30 V
    Rated impulse voltage Uimp: 1.5 kV
    Connection Type: Plug connector SM12(X6)
    Installation Orientation: Door hinge DIN right
    Degree of protection: IP65
    Item designation: MGB-L1-ARA-AA1A1-S4-R-111521
    Gross weight: 0,9kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Risk time according to EN 60947-5-3: max. 350 ms
    Risk time according to EN 60947-5-3, extension for each additional device: max. 5 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 1 ms
    Test Pulse Interval: min. 100 ms
    Switching frequency: 0.25 Hz
    Product version number: V4.0.0
    Occupancy diagram: L0
    Transponder coding: Unicode
    Locking force FZh: 2000 N
    Guard locking principle: Closed-circuit current principle
    Product Number Variant Description
    MGB-L1-ARA-AA1A1-S4-R-111521 : Multifunctional Gate Box Locking M. (No others)
