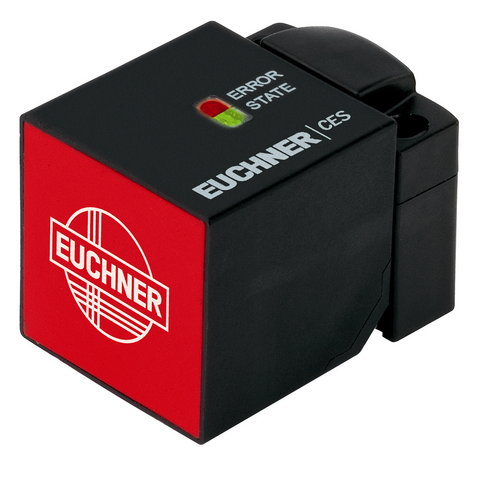

| Rated insulation voltage Ui: |
75 V(Tested by the employersÂ’ liability insurance association up to 75 V.) |
| Rated impulse voltage Uimp: |
1.5 kV |
| Connection Type: |
M12 plug connector, 5-pin; pin 5 not used |
| Installation Orientation: |
any |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-20 … +55 °C |
| Item designation: |
CES-AP-C01-AH-SB-111145 |
| Gross weight: |
0,147kg |
| ECLASS: |
27-27-24-03 Safety-related transponder switch |
| EMC protection requirements: |
Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3: |
max. 260 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Rated Conditional Short-circuit Current: |
max. 100 A |
| Discrepancy time: |
max. 10 ms |
| Off-state Current Ir: |
max. 0.25 mA |
| Test Pulse Duration: |
max. 0.4 ms |
| Ready Delay: |
0.5 s |
| Switching frequency: |
max. 1 Hz |
| Mounting distance: |
min. 40 mm |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Notices For UL Approval: |
Operation only with UL Class 2 power supply or equivalent measures |
| Switch-on Distance: |
22 mm(on surface mounting on aluminum. In a non-metallic environment, the typical operating distances increase to 30 mm) |
| Secured Switch-off Distance Sar: |
max. 58 mm |
| Secured switching distance sao: |
min. 18 mm |
| Switching hysteresis: |
1 … 2 mm |
