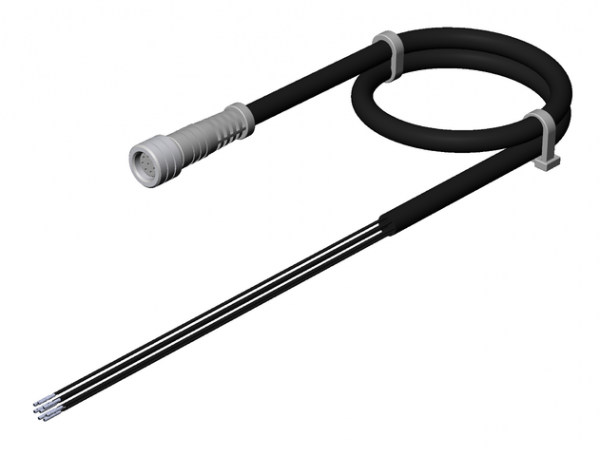

Euchner 110934E | C-M08F08-08X014PV10,0-ES-110934 : Connecting Cable
The Connecting Cable is designed for reliable electrical connections between devices, ensuring optimal performance and safety.
| Attribute | Value |
|---|---|
| Rated impulse voltage Uimp: | 0.5 kV |
| Connection Type: | Female plug |
| Degree of protection: | IP67(in the screwed tight state) |
| Item designation: | C-M08F08-08X014PV10,0-ES-110934 |
| Gross weight: | 0,363kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Rated voltage: | 32 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 8 |
| Plug lock: | Screw connection |
| Insertion Cycles: | 500 |
| Tightening torque: | 0.3 Nm |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -5 … +70 °C |
| Cable ambient temperature (static): | -25 … +80 °C |
| Cable length: | 10 m |
| Conductor Cross-section: | 0.14 mm² |
| Number of conductors: | 8 |
| Fire Behavior: | flame retardant according to IEC 60332-1-2 |
| Cable Type: | straight |
| Drag chain suitability: | no |
| Conductor End: | Cable end sleeve |
