| Connection Cross Section: |
0.14 … 1 mm²(Soldered connection) |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
3A gG |
| thermal rated current Ith: |
3 A |
| Approach speed: |
0.01 … 50 m/min |
| Actuating force: |
15 … 20 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10?(Tested at 80 °C 1 x 10^6 125 °C 1 x 10^6 (lubrication every 200,000 operating cycles)) |
| Switching principle: |
Changeover contact with snap-action function |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-5 … +125 °C |
| B10D: |
20 x 10? |

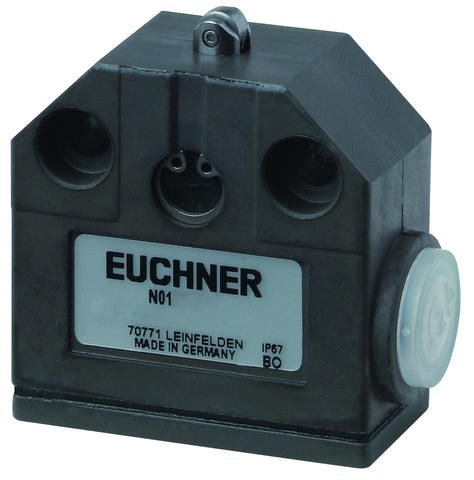

| Item designation: |
N01R593-M |
| Gross weight: |
0,089kg |
| ECLASS: |
27-27-06-01 Position switch (Type 1) |
| Additional feature: |
Ambient temp. Manufacturer’s specification for switching element (Europe) max. 140 °C / UL max. 130 °C |
| Number of door position NO contacts: |
1(Changeover contact) |
| Number of door position NC contacts: |
1 Changeover contact |
