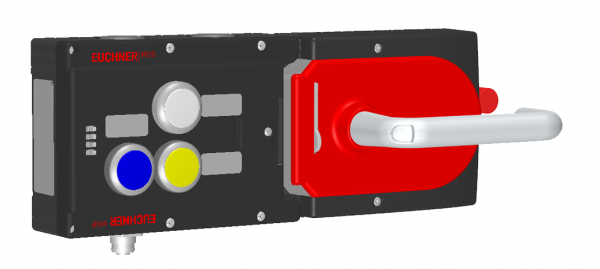

Euchner 110550E | MGB-L0H-APA-R-110550 : Multifunctional Gate Box Complete
The MGB-L0H-APA-R-110550 is a fully equipped multifunctional gate box that provides robust locking solutions for secure access.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 30 V |
Switching current: | 1 … 10 mA |
Installation Orientation: | Door hinge DIN right |
Degree of protection: | IP65 |
Item designation: | MGB-L0H-APA-R-110550 |
Gross weight: | 2,07kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
Risk time according to EN 60947-5-3: | max. 350 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Test Pulse Duration: | max. 0.3 ms |
Test Pulse Interval: | min. 100 ms |
Switching frequency: | 0.25 Hz |
Switching voltage: | UAV |
Product version number: | V3.0.0 |
Occupancy diagram: | L1 |
Rated impulse withstand voltage Uimp: | 1.5 kV |
Transponder coding: | Unicode |
Breaking capacity: | max. 0.25 W |
LED Power Supply: | 24 V DC |
Product Number | Variant Description |
---|---|
MGB-L0H-APA-R-110550 : Multifunctional Gate Box Complete | (No others) |
