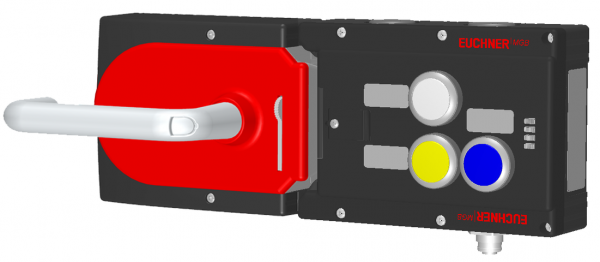

Euchner 110549E | MGB-L2H-APA-L-110549 : Multifunctional Gate Box Complete

The MGB-L2H-APA-L-110549 is a comprehensive multifunctional gate box that ensures effective locking and safety features.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 30 V
    Switching current: 1 … 10 mA
    Installation Orientation: Door hinge DIN left
    Degree of protection: IP65
    Item designation: MGB-L2H-APA-L-110549
    Gross weight: 2,076kg
    ECLASS: 27-27-24-05 Safety-related transponder switch with guardlocking
    Risk time according to EN 60947-5-3: max. 350 ms
    Safety Class: III
    Degree of contamination (external, according to EN 60947-1): 3
    Output Type: Semiconductor outputs, p-switching, short circuit-proof
    Test Pulse Duration: max. 0.3 ms
    Test Pulse Interval: min. 100 ms
    Switching frequency: 0.25 Hz
    Switching voltage: UAV
    Product version number: V4.0.0
    Occupancy diagram: L1
    Rated impulse withstand voltage Uimp: 1.5 kV
    Transponder coding: Unicode
    Breaking capacity: max. 0.25 W
    LED Power Supply: 24 V DC
    Locking force FZh: 2000 N
    Guard locking principle: Open-circuit current principle
    Product Number Variant Description
    MGB-L2H-APA-L-110549 : Multifunctional Gate Box Complete (No others)
