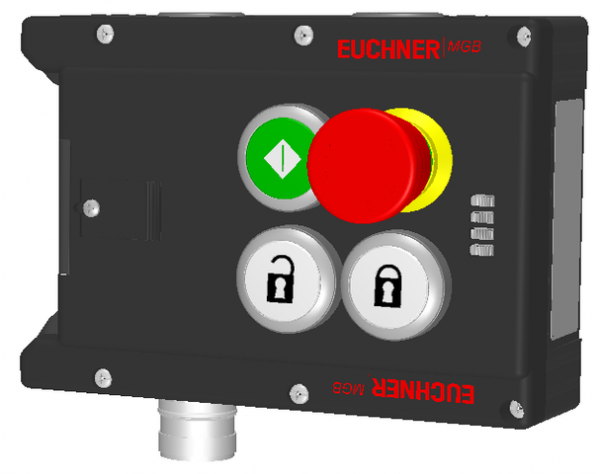

Euchner 110499E | MGB-L1-APA-AC6A1-S1-L-110499 : Multifunctional Gate Box Locking M.
$2,772.22
Explore the Euchner 110499E | MGB-L1-APA-AC6A1-S1-L-110499 : Multifunctional Gate Box Locking M.. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 110499E |
| Connection Type: | Plug connector RC18(X6) |
| Installation Orientation: | Door hinge DIN left |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65 |
| Order Number: | 110499 |
| Item designation: | MGB-L1-APA-AC6A1-S1-L-110499 |
| Gross weight: | 2,305kg |
| Customs tariff number: | 85371098 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Product version number: | V4.0.0 |
| Occupancy diagram: | L1 |
| Rated insulation voltage Ui: | 30 V |
| Rated impulse voltage Uimp: | 1.5 kV |
| Safety Class: | III |
| Transponder coding: | Unicode |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | 0.25 Hz |
| Locking force FZh: | 2000 N |
| Guard locking principle: | Closed-circuit current principle |
| Switching voltage: | 5 … 24 V |
| Switching current: | 1 … 100 mA |
| Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
| Breaking capacity: | max. 0.25 W |
| LED Power Supply: | 24 V DC |
| Test Pulse Duration: | max. 0.3 ms |
| Risk time according to EN 60947-5-3: | max. 350 ms |
| Test Pulse Interval: | min. 100 ms |
