| Rated insulation voltage Ui: |
30 V |
| Switching current: |
1 … 100 mA |
| Connection Type: |
Plug connector RC26(X6) |
| Installation Orientation: |
Door hinge DIN right |
| Degree of protection: |
IP65 |
| Ambient temperature: |
-20 … +55 °C |
| Item designation: |

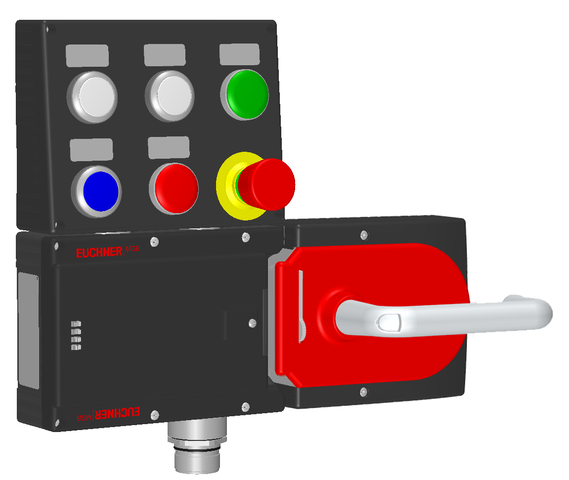

MGB-L0HC-ARA-R-110255 |
| Gross weight: |
2,3kg |
| ECLASS: |
27-27-24-03 Safety-related transponder switch |
| Risk time according to EN 60947-5-3: |
max. 350 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: |
max. 5 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Test Pulse Duration: |
max. 1 ms |
| Test Pulse Interval: |
min. 100 ms |
| Switching frequency: |
0.25 Hz |
| Additional feature: |
with automatic lockout mechanism |
| Switching voltage: |
5 … 24 V |
| Product version number: |
V3.0.0 |
| Rated impulse withstand voltage Uimp: |
1.5 kV |
| Transponder coding: |
Unicode |
| Breaking capacity: |
max. 0.25 W |
| LED Power Supply: |
24 V DC |
