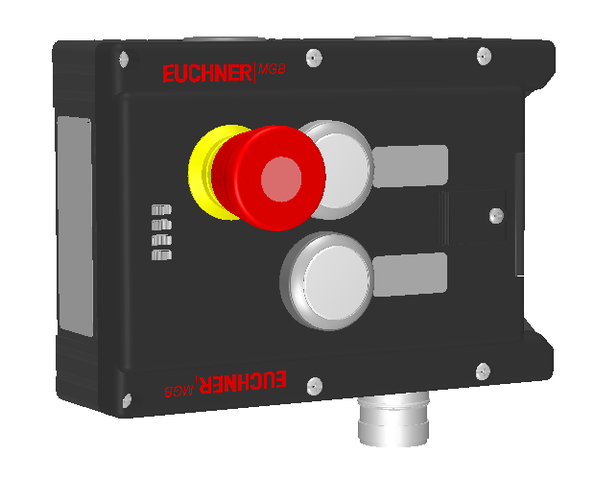

Euchner 109764E | MGB-L1-APA-AB6A1-S1-R-109764 : Multifunctional Gate Box Locking M.
The MGB-L1-APA-AB6A1-S1-R-109764 is a multifunctional gate box locking mechanism that enhances security and access control.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 30 V |
Rated impulse voltage Uimp: | 1.5 kV |
Switching current: | 1 … 100 mA |
Connection Type: | Plug connector RC18(X6) |
Installation Orientation: | Door hinge DIN right |
Degree of protection: | IP65 |
Item designation: | MGB-L1-APA-AB6A1-S1-R-109764 |
Gross weight: | 1,084kg |
ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
Risk time according to EN 60947-5-3: | max. 350 ms |
Safety Class: | III |
Degree of contamination (external, according to EN 60947-1): | 3 |
Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
Test Pulse Duration: | max. 0.3 ms |
Test Pulse Interval: | min. 100 ms |
Switching frequency: | 0.25 Hz |
Switching voltage: | 5 … 24 V |
Product version number: | V4.0.0 |
Occupancy diagram: | L1 |
Transponder coding: | Unicode |
Breaking capacity: | max. 0.25 W |
LED Power Supply: | 24 V DC |
Locking force FZh: | 2000 N |
Guard locking principle: | Closed-circuit current principle |
Product Number | Variant Description |
---|---|
MGB-L1-APA-AB6A1-S1-R-109764 : Multifunctional Gate Box Locking M. | MGB-L2-APA-AB6A1-S1-R-109765 : Multifunctional Gate Box Locking M. |
