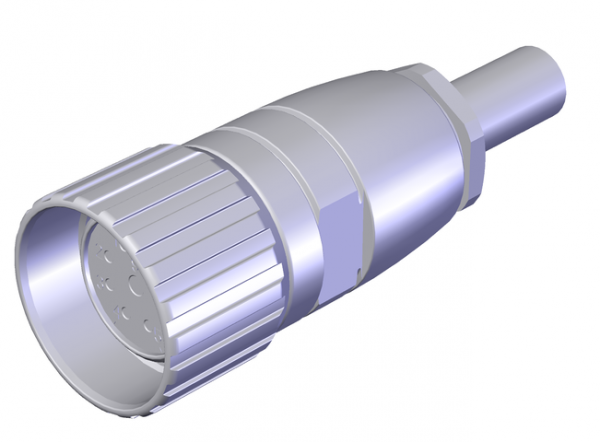

Euchner 106597E | P-M23F09-106597 : Connector
The P-M23F09-106597 is a robust connector that ensures reliable electrical connections in various applications.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67(When inserted and secured) |
| Ambient temperature: | -20 … +125 °C |
| Item designation: | P-M23F09-106597 |
| Gross weight: | 0,089kg |
| Rated voltage: | 300 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Type Specification: | M23 |
| Cable Outlet: | straight |
| Number of pins: | 9 |
| Plug lock: | Screw connection |
| Insertion Cycles: | 50 |
| Overvoltage category according to IEC EN 60664-1: | II |
| Test voltage: | 2.5 kV |
| Cable diameter: | 8 … 12 mm |
| Plug connector designation: | RC9 |
| Rated Current I: | 8000 mA |
| Product Number | Variant Description |
|---|---|
| P-M23F09-106597 : Connector | (No others) |
