| Connection Cross Section: |
0.34 … 1.5 mm² |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
4A gG |
| thermal rated current Ith: |
4 A |
| Approach speed: |
0.1 … 60 m/min |
| Number of NO contacts: |
1 |
| Actuating force: |
min. 15 N |
| Installation Orientation: |
any |
| Mechanical Life: |
30 x 10?(At – 40°C 1 x 10^5) |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-40 … +80 °C |
| Item designation: |

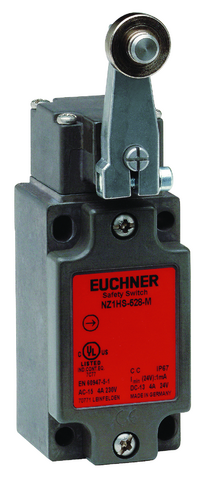

NZ1HS-528-MYC2286 |
| Gross weight: |
0,352kg |
| ECLASS: |
27-27-26-01 Safety position switch (Type 1) |
| Number of door position positively driven contacts: |
1 |
