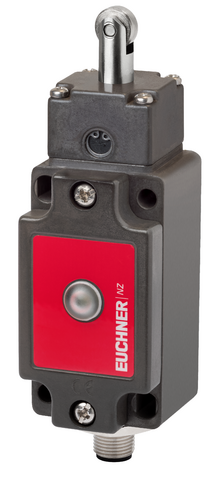

Euchner 106478E | NZ2RS-2131L024GEC2300 : Safety Switch
Safety Switch that ensures the safe operation of machinery by preventing accidental starts when safety guards are removed.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 30 V |
Rated impulse voltage Uimp: | 1.5 kV |
Short circuit protection according to IEC 60269-1: | 1A gG |
thermal rated current Ith: | 1 A |
Approach speed: | 0.1 … 20 m/min |
Number of NO contacts: | 1 |
Actuating force: | 15 … 30 N |
Installation Orientation: | any |
Mechanical Life: | 30 x 10? |
Switching principle: | Slow-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -25 … +80 °C |
Item designation: | NZ2RS-2131L024GEC2300 |
Gross weight: | 0,346kg |
ECLASS: | 27-27-26-01 Safety position switch (Type 1) |
Additional feature: | Housing without earth conductor! All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures. |
Number of door position positively driven contacts: | 3 |
Display module: | 24 V 10% … 10% |
Product Number | Variant Description |
---|---|
NZ2RS-2131L024GEC2300 : Safety Switch | NZ2HS-2131L024GEC2300 : Safety Switch |
