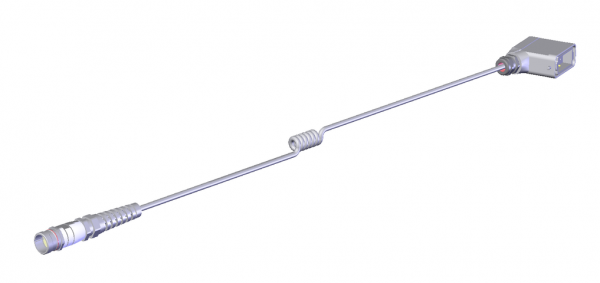

Euchner 106391E | SPIRALLEITG M STECKVERB 3,9M-106391 : Spiral Cable
Spiral Cable designed for flexible connections in various applications, providing durability and ease of use.
Request a quote
Attribute | Value |
---|---|
Connection Type: | Female plug |
Degree of protection: | IP67(locked) |
Item designation: | SPIRALLEITG M STECKVERB 3,9M-106391 |
Gross weight: | 0,553kg |
ECLASS: | 27-06-03-04 Appliance cord (data cable) |
Number of pins: | 17 |
Dynamic bending radius: | 15 x cable diameter |
Static bending radius: | 10 x cable diameter |
Cable ambient temperature (dynamic): | -10 … +70 °C |
Cable ambient temperature (static): | -40 … +80 °C |
Cable length: | 3.9 m(extended) |
Cable shielding: | yes(Cu thread covering, optical coverage approx. 90%) |
Specific Conductor Resistance: | max. 145 ?/km |
Conductor Identification: | Color code according to DIN 47100 |
Conductor Cross-section: | 0.14 mm² |
Number of conductors: | 12 |
Cable Type: | coiled |
Cable diameter: | 7.5 mm -0,3 … +0,3 mm |
Drag chain suitability: | no |
Plug connector designation: | RC17(Pin 1 to 10 are wired through 11) |
Product Number | Variant Description |
---|---|
SPIRALLEITG M STECKVERB 3,9M-106391 : Spiral Cable | SPIRALLEITG M STECKVERB 9M-106392 : Spiral Cable |
