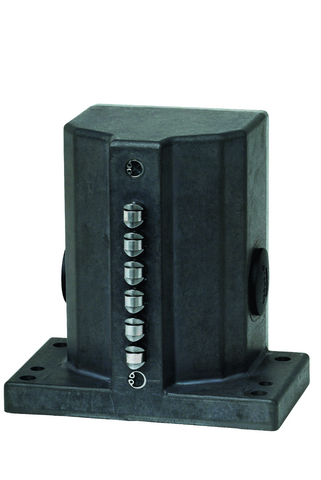

Euchner 106063E | RGBF05R12-1514AM-M : Multiple Limit Switch
$2,593.33
Explore the Euchner 106063E | RGBF05R12-1514AM-M : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
Request a quote
Attribute | Value |
---|---|
Product Code: | 106063E |
Installation Orientation: | any |
Storage temperature: | -25 … 80 °C |
Degree of protection: | IP67 |
Ambient temperature: | -5 … 80 °C |
Order Number: | 087105 |
Item designation: | RGBF05R12-1514-M |
Gross weight: | 0,914kg |
Customs tariff number: | 85365019000 |
ECLASS: | 27-27-06-02 Multi-position switch |
Mechanical Life: | 1 x 10? |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Connection Cross Section: | 0.34 … 1.5 mm² |
thermal rated current Ith: | 8 A |
Approach Speed: | 0.01 … 80 m/min |
Design: | upright, according to DIN 43697 |
Actuating force: | min. 30 N |
B10D: | 2 x 10? |
Number of switching elements: | 5 |
Number of NO contacts: | 5 |
Number of positively driven contacts: | 1 |
Plunger spacing: | 12 mm |
Number NC contacts: | 4 |
Additional information: | Mixed contact assembly(On upright multiple limit switches, it is necessary to start with the safety station/s from the flange side. If several safety stations are to be installed, these must be installed directly one after the other.) |
