| Rated insulation voltage Ui: |
300 V(Tested up to 75 V by employers’ liability insurance association) |
| Connection Type: |
M12 plug connector, 8-pin |
| Installation Orientation: |
any |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-20 … +55 °C |
| Item designation: |

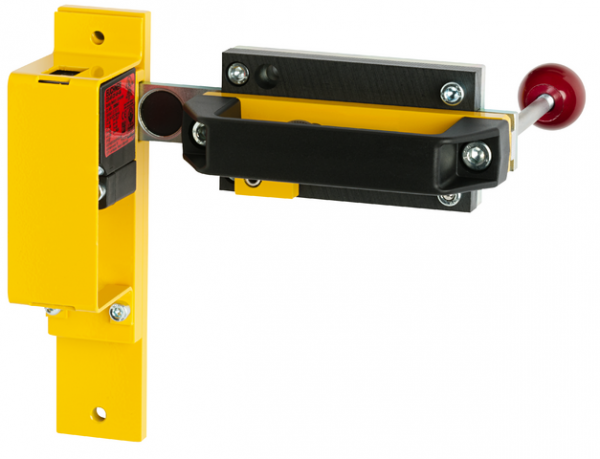

RIEGEL CES-AC/F-AR-C01-AH-SA-105619 |
| Gross weight: |
2,236kg |
| EMC protection requirements: |
Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3: |
max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: |
max. 5 ms |
| Safety Class: |
III |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Output Type: |
Semiconductor outputs, p-switching, short circuit-proof |
| Rated Conditional Short-circuit Current: |
max. 100 A |
| Discrepancy time: |
max. 10 ms |
| Off-state Current Ir: |
max. 0.25 mA |
| Test Pulse Duration: |
max. 1 ms |
| Ready Delay: |
10 s |
| Switching frequency: |
max. 1 Hz |
| Mounting distance: |
min. 40 mm |
| Shock And Vibration Resistance: |
Acc. to EN IEC 60947-5-3 |
| Rated impulse withstand voltage Uimp: |
1.5 kV |
| Approach direction: |
A or C |
| Number of safety switches that can be mounted: |
1 |
| Escape Release: |
yes |
| Detent mechanism closed position: |
Ball detent mechanism |
| Detent mechanism open position: |
Bolt detent mechanism |
| The following applies to the approval according to UL: |
Operation only with UL Class 2 power supply or equivalent measures |
