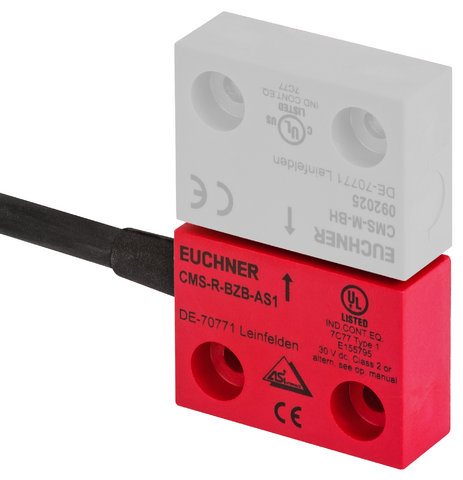

Euchner 105094E | CMS-R-BZB-01P-AS1 : Read Head
The CMS-R-BZB-01P-AS1 is a versatile read head that provides reliable data reading for various industrial automation systems.
| Attribute | Value |
|---|---|
| Connection Type: | hard-wired encapsulated cable with plug connector M12 |
| Design: | B |
| Installation Orientation: | any |
| Mechanical Life: | 100 x 10? |
| Degree of protection: | IP67 |
| Ambient temperature: | -20 … +60 °C |
| B10D: | 3 x 10? |
| Item designation: | CMS-R-BZB-01P-AS1 |
| Gross weight: | 0,085kg |
| ECLASS: | 27-27-24-02 Safety-related magnetic proximity switch |
| Secured Switch-off Distance Sar: | max. 40 mm |
| Performance Level: | PL e |
| Category: | 3 |
| PFHD: | 4.29 x 10-8 |
| Mission time: | 20 y |
| Cable length: | 1 m |
| Method of Operation: | magnetic, reed contact |
| ASI operating current: | max. 30 mA |
| AS-Interface protocol: | ASi-3 |
| ASI data in: | D0 – D3 = Door position |
| AS-Interface slave type: | ID-Code B, EA-Code 0 |
| Operating distance on: | min. 7 mm |
| Product Number | Variant Description |
|---|---|
| CMS-R-BZB-01P-AS1 : Read Head | (No others) |
