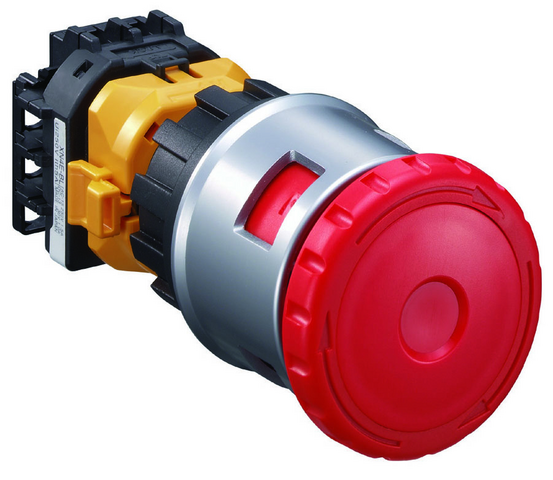

Euchner 105015E | ES-XN4E-BL412MFRH : E-Stop Button
The ES-XN4E-BL412MFRH is an emergency stop button designed for quick and reliable operation in critical situations.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 250 V |
| thermal rated current Ith: | 1 A |
| Connection Type: | Screw terminal |
| Number of NO contacts: | 1 |
| Number of positively driven contacts: | 2 |
| Mechanical Life: | 0.25 x 10? |
| Degree of protection: | IP20 |
| Ambient temperature: | -25 … +60 °C |
| Item designation: | ES-XN4E-BL412MFRH |
| Gross weight: | 0,064kg |
| ECLASS: | 27-37-12-44 EMERGENCY-STOP pushbutton, complete device |
| Mounting cut-out: | D30 (EN IEC 60947-5-1) |
| Product Number | Variant Description |
|---|---|
| ES-XN4E-BL412MFRH : E-Stop Button | (No others) |
