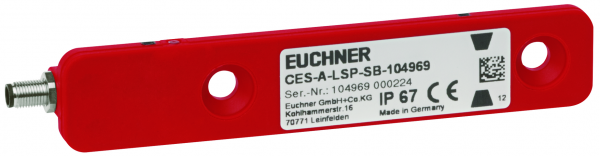

Euchner 104969E | CES-A-LSP-SB-104969 : Read Head
The CES-A-LSP-SB-104969 is a precision read head designed for accurate position sensing in automation applications.
| Attribute | Value |
|---|---|
| Connection Type: | M5 plug connector, 3-pin |
| Installation Orientation: | any |
| Degree of protection: | IP67 |
| Ambient temperature: | -25 … +70 °C |
| Item designation: | CES-A-LSP-SB-104969 |
| Gross weight: | 0,031kg |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Power Supply: | via evaluation unit |
| LED Display: | white valid actuator detected |
| Method of Operation: | inductive |
| Product Number | Variant Description |
|---|---|
| CES-A-LSP-SB-104969 : Read Head | (No others) |
