Euchner 104899E | STUFENSCHALTER 6 POS MIT ZUBEHOER : Selector Switch
The STUFENSCHALTER 6 POS MIT ZUBEHOER is a versatile 6-position selector switch that allows for easy selection between multiple options.
| Attribute | Value |
|---|---|
| Switching current: | 0.1 … 20 mA |
| Connection Type: | Soldered connection on printed circuit board |
| Mechanical Life: | 0.05 x 10? |
| Degree of protection: | IP67(when installed) |
| Ambient temperature: | -25 … +70 °C |
| Item designation: | STUFENSCHALTER MIT PLATINE 16 GRAY |
| Gross weight: | 0,006kg |
| Contact Resistance: | max. 200 m? |

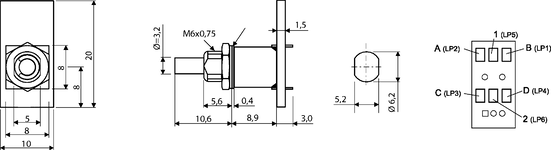

| Mounting cut-out: | 6,2 x 5,2 mm |
| Detent Positions Per Revolution: | 16 make-before-break |
| Output Code: | Gray code |
| Switching capacity (VA): | max. 0.2 VA |
| Detent angle: | 22.5 |
| Product Number | Variant Description |
|---|---|
| STUFENSCHALTER 6 POS MIT ZUBEHOER : Selector Switch | (No others) |
