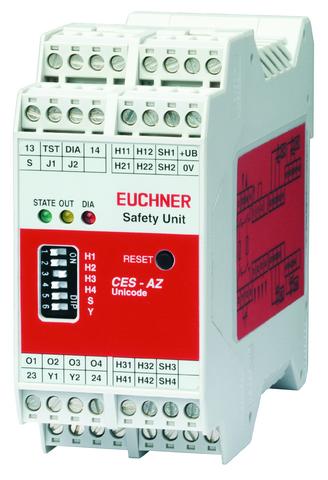

Euchner 104780E | CES-AZ-AES-04B : Evaluation Unit
$1,664.44
Explore the Euchner 104780E | CES-AZ-AES-04B : Evaluation Unit. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 104780E |
| Connection Type: | plug-in connection terminals, coded(Terminals not included) |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP20 |
| Order Number: | 104780 |
| Item designation: | CES-AZ-AES-04B |
| Gross weight: | 0,302kg |
| Customs tariff number: | 85364110 |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Secured Switch-off Distance Sar: | max. 32 mm |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 4 kV |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1): | 2 |
| Switching frequency: | max. 0.25 Hz(In case of monitoring with feedback loop, the actuators must remain outside the actuating range, e.g. with a door open, until the feedback loop is closed.) |
| Output Type: | Relay contacts, floating |
| Output voltage: | 0.8 x UB … UB V DC |
| Global Trade Item Number (GTIN): | 4047048005686 |
| Mounting type: | Mounting rail TH 35 (EN IEC 60715) |
| Ready Delay: | 10 … 12 s(After the operating voltage is switched on, the relay outputs are switched off and the door monitoring outputs are set to LOW level during the ready delay. For visual indication of the delay, the green STATE LED flashes at a frequency of approx. 15 Hz.) |
| Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures |
| Rated Conditional Short-circuit Current: | 100 A |
| Current Via Feedback Loop: | 5 … 8 … 10 mA |
| permissible resistance in feedback loop: | max. 600 ? |
| Number of read heads: | max. 4 read heads can be connected |
| Dwell time: | min. 3 s(The dwell time is the time that the actuator must be outside the actuating range.) |
| Number of safety contacts: | 2 Relay with internally monitored contacts |
