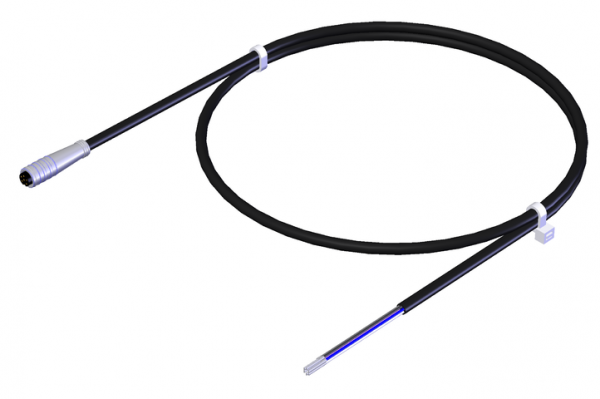

Euchner 103558E | C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable
The C-R08F06-06X014PV15,0-ES-103558 is a high-quality connecting cable designed for reliable electrical connections in various applications.
Request a quote
Attribute | Value |
---|---|
Connection Type: | Female plug |
Degree of protection: | IP67(in the inserted state) |
Item designation: | C-R08F06-06X014PV15,0-ES-103558 |
Gross weight: | 0,44kg |
ECLASS: | 27-06-03-04 Appliance cord (data cable) |
Rated voltage: | 30 V |
Degree of contamination according to EN 60664-1: | 3 |
Cable Outlet: | straight |
Number of pins: | 6 |
Plug lock: | Snap-on |
Insertion Cycles: | 100 |
Dynamic bending radius: | 10 x cable diameter |
Static bending radius: | 5 x cable diameter |
Cable ambient temperature (dynamic): | 0 … +70 °C |
Cable ambient temperature (static): | -30 … +70 °C |
Cable length: | 15 m |
Specific Inductance: | 0.65 mH/km |
Specific Capacitance: | 128 nF/km |
Specific Conductor Resistance: | 150 ?/km |
Conductor Identification: | Color code |
Conductor Cross-section: | 0.14 mm² |
Number of conductors: | 6 |
Fire Behavior: | according to VDE 0472 |
Cable Type: | straight |
Sheath Color: | gray |
Drag chain suitability: | no |
UV resistance: | largely according to VDE0472 |
Conductor End: | Cable end sleeve |
Product Number | Variant Description |
---|---|
C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV10,0-ES-103557 : Connecting Cable |
C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV05,0-ES-103556 : Connecting Cable |
C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV20,0-ES-103559 : Connecting Cable |
C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV25,0-ES-103560 : Connecting Cable |
