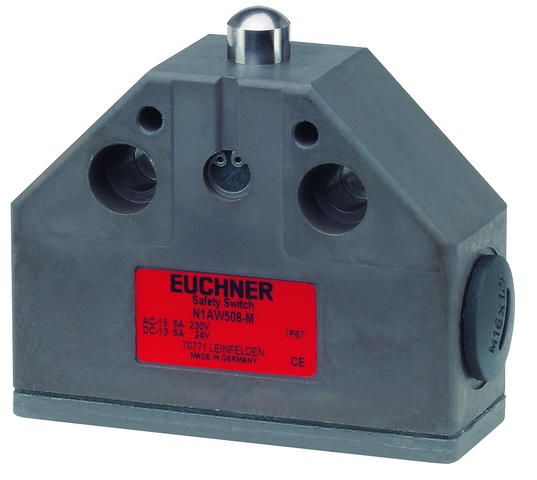

Euchner 103222E | N1AW508-MC2222 : Single Plunger
The N1AW508-MC2222 is a single plunger actuator, ideal for applications requiring precise linear motion.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 4 kV |
| Short circuit protection according to IEC 60269-1: | 10A gG |
| thermal rated current Ith: | 10 A |
| Approach speed: | 0.01 … 10 m/min |
| Design: | Housing according to DIN 43693 |
| Actuating element: | Rounded plunger |
| Actuating force: | min. 15 N |
| Installation Orientation: | any |
| Mechanical Life: | 30 x 10? |
| Switching principle: | Slow-action switching contact |
| Degree of protection: | IP67 |
| Ambient temperature: | -40 … +80 °C |
| B10D: | 20 x 10? |
| Item designation: | N1AW508-MC2222 |
| Gross weight: | 0,239kg |
| ECLASS: | 27-27-06-01 Position switch (Type 1) |
| Number of door position positively driven contacts: | 1 |
