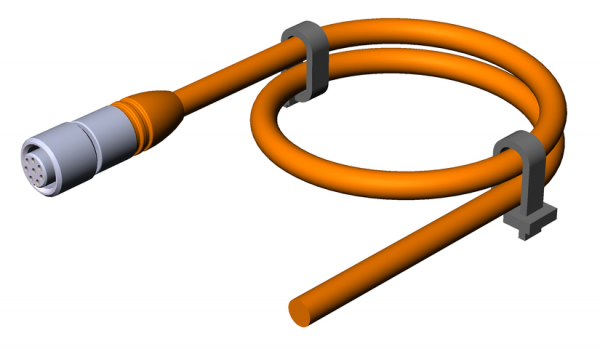

Euchner 103115E | C-M12F08-07X025PV25,0-MA-103115 : Connecting Cable
The C-M12F08-07X025PV25,0-MA-103115 is a high-quality connecting cable designed for reliable signal transmission.
Request a quote
Attribute | Value |
---|---|
Connection Type: | Female plug |
Degree of protection: | IP67(When inserted and secured) |
Item designation: | C-M12F08-08X025PV25,0-GA-077872 |
Gross weight: | 1,657kg |
ECLASS: | 27-06-03-04 Appliance cord (data cable) |
Rated voltage: | 30 V |
Cable Outlet: | straight |
Number of pins: | 8 |
Plug lock: | Screw connection |
Tightening torque: | 0.5 Nm |
Dynamic bending radius: | 15 x cable diameter |
Static bending radius: | 8 x cable diameter |
Cable ambient temperature (dynamic): | +5 … +70 °C |
Cable ambient temperature (static): | -25 … +70 °C |
Cable length: | 25 m |
Cable shielding: | connected to union nut(Cu braid, coverage approx. 85%) |
Conductor Identification: | Color code |
Conductor Cross-section: | 0.25 mm² |
Number of conductors: | 8 |
Cable Type: | straight |
Drag chain suitability: | no |
Conductor End: | trimmed smooth |
Product Number | Variant Description |
---|---|
C-M12F08-07X025PV25,0-MA-103115 : Connecting Cable | (No others) |
