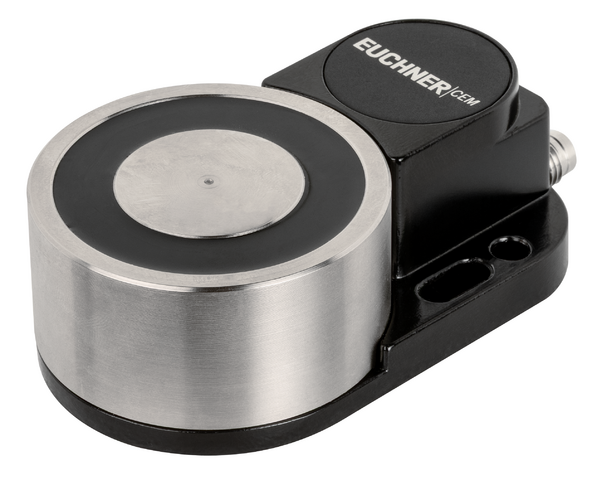

Euchner 102821E | CEM-A-LE05K-S1-10P : Read Head
$611.11
Explore the Euchner 102821E | CEM-A-LE05K-S1-10P : Read Head. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 102821E |
| Installation Orientation: | any |
| Storage temperature: | -30 … 80 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -25 … 50 °C |
| Order Number: | 102821 |
| Item designation: | CEM-A-LE05K-S1-10P |
| Gross weight: | 0,777kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-24-05 Safety-related transponder switch with guardlocking |
| Secured Switch-off Distance Sar: | max. 20 mm |
| Guard locking principle: | Open-circuit current principle |
| Center Offset: | -2.5 … +2.5 mm |
| Cable length: | max. 25 m |
| Power consumption: | 2.5 W |
| Solenoid Duty Cycle: | 100 % |
| Dynamic bending radius: | 10x cable diameter |
| Cable ambient temperature (dynamic): | -5 … 70 °C |
| Cable ambient temperature (static): | -30 … 80 °C |
| Static bending radius: | 5x cable diameter |
