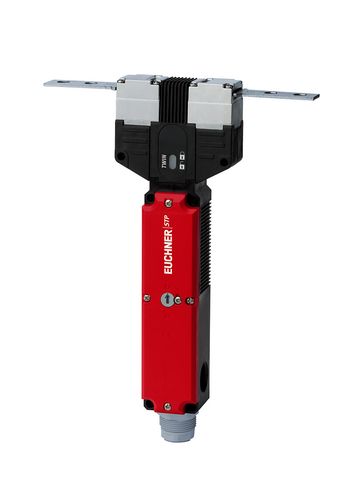

Euchner 102565E | STP-TW-4A-2131AC024SR11 : Safety Switch
$1,086.67
Explore the Euchner 102565E | STP-TW-4A-2131AC024SR11 : Safety Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 102565E |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP65 |
| Ambient temperature: | -20 … 55 °C |
| Order Number: | 102565 |
| Item designation: | STP-TW-4A-2131AC024SR11 |
| Gross weight: | 0,61kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-26-03 Safety switch with guard control |
| Mechanical Life: | 1 x 10? |
| Rated insulation voltage Ui: | 50 V |
| Rated impulse voltage Uimp: | 1.5 kV |
| Fuse: | max. 4 A gG |
| Locking force FZh: | 2000 N |
| Guard locking principle: | Open-circuit current principle |
| thermal rated current Ith: | 4 A |
| Approach Speed: | max. 20 m/min |
| Extraction Force: | 30 N |
| Actuation frequency: | max. 1200 1/h |
| Actuating force: | 35 N |
| Insertion Depth: | 24.5 mm |
| Retention Force: | 20 N |
| Switching principle: | Slow-action switching contact |
| Overtravel: | 5 mm |
| Power consumption: | 8 W |
| Solenoid Duty Cycle: | 100 % |
| Approach direction: | A and C(two actuating heads) |
| Number of guard lock monitoring NO contacts: | 1 |
| Number of guard lock monitoring positively driven contacts: | 2 |
| Locking force Fmax: | 2500 N |
| Number of door position NC contacts: | 1 |
