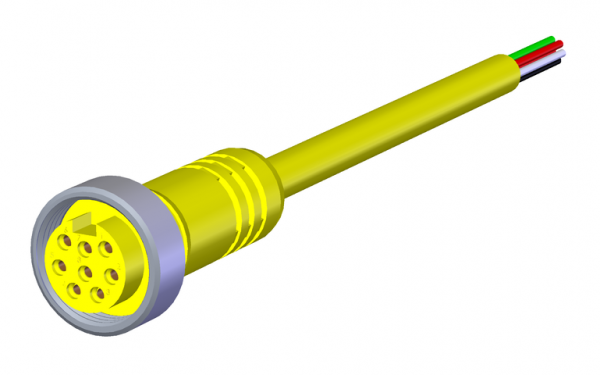

Euchner 102521E | C-MINF10-10X1,0PU18,2-MA-102521 : Connecting Cable
High-quality connecting cable suitable for a range of electronic devices and systems.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67 |
| Ambient temperature: | -40 … +80 °C |
| Item designation: | C-MINF10-10X1,0PU18,2-MA-102521 |
| Gross weight: | 3,085kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Rated voltage: | 300 V |
| Cable Outlet: | straight |
| Number of pins: | 10 |
| Plug lock: | Screw connection |
| Cable length: | 18.2 m |
| Conductor Cross-section: | 18 AWG |
| Number of conductors: | 10 |
| Cable Type: | straight |
| Cable diameter: | 9.8 mm |
| Drag chain suitability: | no |
| Conductor End: | Sheath stripped |
