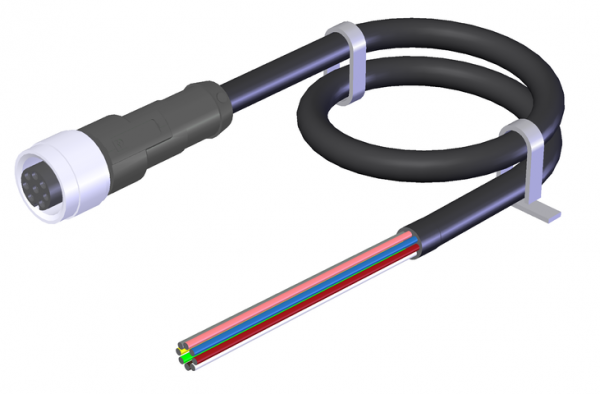

Euchner 102218E | C-M12F08-07X025PU10,0-MA-102218 : Connecting Cable
The C-M12F08-07X025PU10,0-MA-102218 is a durable connecting cable ideal for connecting devices in industrial environments.
Request a quote
Attribute | Value |
---|---|
Connection Type: | Female plug |
Degree of protection: | IP67 |
Item designation: | C-M12F08-07X025PU10,0-MA-102218 |
Gross weight: | 0,456kg |
ECLASS: | 27-06-03-04 Appliance cord (data cable) |
Rated voltage: | 30 V |
Degree of contamination according to EN 60664-1: | 3 |
Cable Outlet: | straight |
Number of pins: | 8 |
Plug lock: | Screw connection |
Tightening torque: | 0.5 Nm |
Static bending radius: | 10 x cable diameter |
Cable ambient temperature (dynamic): | -5 … +80 °C |
Cable ambient temperature (static): | -40 … +80 °C |
Test voltage: | 1.5 kV |
Cable length: | 10 m |
Conductor Identification: | Color code |
Conductor Cross-section: | 0.25 mm² |
Number of conductors: | 7 |
Cable Type: | straight |
Sheath Color: | black |
Drag chain suitability: | no |
Silicone-free: | yes |
Conductor End: | Sheath stripped |
Individual shielding: | yes, shield around flexes BN and WH connected to pin 3 |
Product Number | Variant Description |
---|---|
C-M12F08-07X025PU10,0-MA-102218 : Connecting Cable | (No others) |
