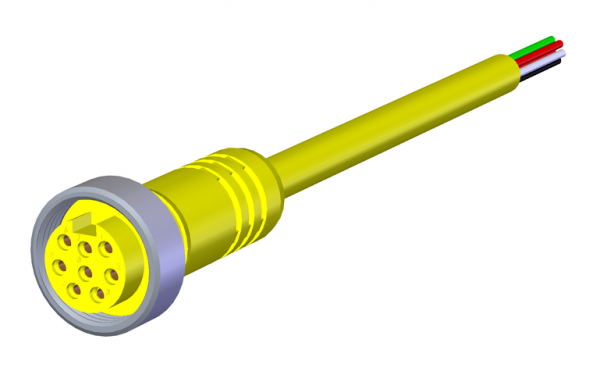

Euchner 100946E | C-MINF08-08X1,0PU06,0-MA-100946 : Connecting Cable
$706.67
Explore the Euchner 100946E | C-MINF08-08X1,0PU06,0-MA-100946 : Connecting Cable. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 100946E |
| Connection Type: | Female plug |
| Storage temperature: | -40 … 80 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -40 … 80 °C |
| Order Number: | 100946 |
| Item designation: | C-MINF08-08X1,0PU06,0-MA-100946 |
| Gross weight: | 0,893kg |
| Customs tariff number: | 85444290900 |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Number of pins: | 8 |
| Rated voltage: | 300 V |
| Cable length: | 6 m |
| Plug lock: | Screw connection |
| Conductor Cross-section: | 18 AWG |
| Number of conductors: | 8 |
| Cable Type: | straight |
| Cable diameter: | 8.9 mm |
| Drag chain suitability: | No |
| Conductor End: | Sheath stripped |
| Cable Outlet: | straight |
