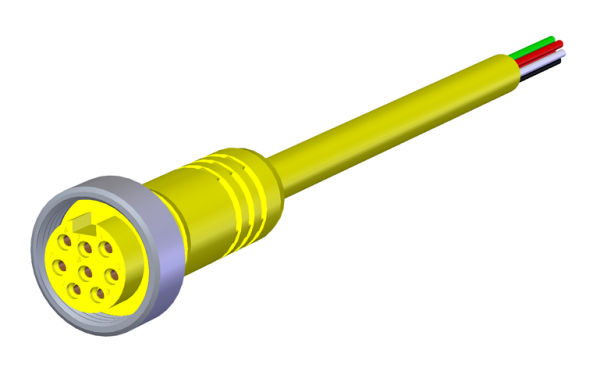

Euchner 100941E | C-MINF08-08X1,0PV09,1-MA-100941 : Connecting Cable

Connecting cable designed for reliable electrical connections in various applications.

Request a quote

    Attribute Value
    Connection Type: Female plug
    Degree of protection: IP67
    Ambient temperature: -40 … +80 °C
    Item designation: C-MINF08-08X1,0PV09,1-MA-100941
    Gross weight: 1,299kg
    ECLASS: 27-06-03-04 Appliance cord (data cable)
    Rated voltage: 300 V
    Cable Outlet: straight
    Number of pins: 8
    Plug lock: Screw connection
    Cable length: 9.1 m
    Conductor Cross-section: 18 AWG
    Number of conductors: 8
    Cable Type: straight
    Drag chain suitability: no
    Conductor End: Sheath stripped
    Product Number Variant Description
    C-MINF08-08X1,0PV09,1-MA-100941 : Connecting Cable (No others)
