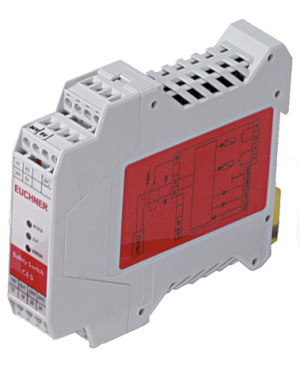

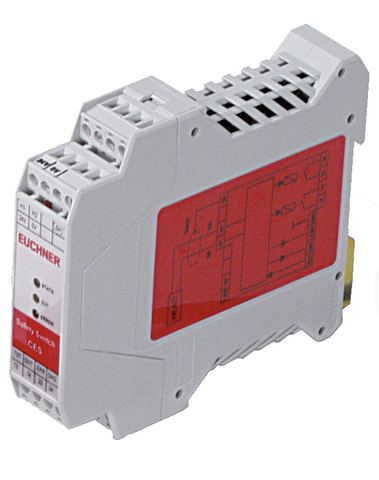

Euchner 100064E | CES-AZ-ABS-01B : Evaluation Unit
The CES-AZ-ABS-01B is an evaluation unit that facilitates testing and analysis of various systems.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 4 kV |
Connection Type: | plug-in screw terminals, coded |
Degree of protection: | IP20 |
Item designation: | CES-AZ-ABS-01B |
Gross weight: | 0,244kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
Mounting type: | TH 35 mounting rail (EN IEC 60715) |
EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
Degree of contamination (external, according to EN 60947-1): | 2 |
Output Type: | Relay contacts, floating |
Output voltage: | 0.8 x UB … UB V DC |
Rated Conditional Short-circuit Current: | 100 A |
Ready Delay: | max. 3 s(After the operating voltage is switched on, the relay outputs are switched off and the door monitoring output is set to LOW level during the ready delay.) |
Switching frequency: | max. 1 Hz(If the current load is>100 mA, a switching frequency of 0.1 Hz should not be exceeded as this will affect the mechanical life of the relay contacts.) |
Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measure. |
Secured Switch-off Distance Sar: | max. 47 mm |
Output Current: | max. 20 mA |
Number of safety contacts: | 2 Relay with internally monitored contacts |
Performance Level: | PL e(This value is dependent on the number of switching cycles and the switching current.) |
Category: | 3(This value is dependent on the number of switching cycles and the switching current.) |
PFHD: | 4.3 x 10-8(This value is dependent on the number of switching cycles and the switching current.) |
Mission time: | 20 y(This value is dependent on the number of switching cycles and the switching current.) |
Number of read heads: | 1 read head can be connected |
Dwell time: | min. 0.5 s(The dwell time of an actuator inside and outside the actuating range must be at least 0.5 s to ensure safe detection of internal faults in the evaluation unit (self-monitoring).) |
Diagnostic Coverage (DC): | 90 % |
Product Number | Variant Description |
---|---|
CES-AZ-ABS-01B : Evaluation Unit | (No others) |
