| Rated insulation voltage Ui: |
50 V |
| Rated impulse voltage Uimp: |
1.5 kV |
| Short circuit protection according to IEC 60269-1: |
4A gG(> 70 °C => 2A gG) |
| thermal rated current Ith: |
4 A(>70 °C =>2 A) |
| Approach speed: |
max. 20 m/min |
| Actuating force: |
25 N |
| Installation Orientation: |
any |
| Mechanical Life: |
2 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP65 |
| Ambient temperature: |
-20 … +80 °C |
| Item designation: |

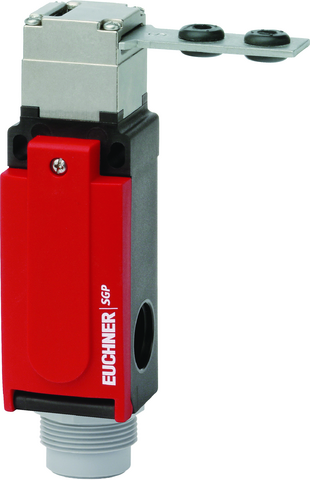

SGP2E-2131ASR11 |
| Gross weight: |
0,239kg |
| ECLASS: |
27-27-26-02 Safety switch with separate actuator (Type 2) |
| Overtravel: |
5 mm |
| Approach direction: |
A |
| Number of door position NO contacts: |
1 |
| Number of door position positively driven contacts: |
3 |
| Extraction Force: |
25 N |
| Actuation frequency: |
max. 6700 1/h |
| Insertion Depth: |
24.5 mm |
| Retention Force: |
10 N |
