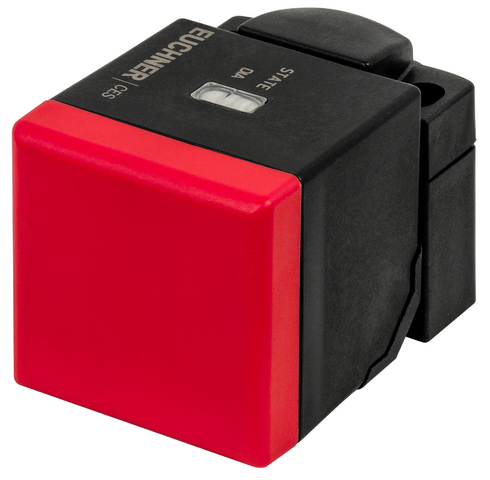

Euchner 098941E | CES-AR-C01-AH-SA : Non Contact Safety Switch
$1,062.22
Explore the Euchner 098941E | CES-AR-C01-AH-SA : Non Contact Safety Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 098941E |
| Connection Type: | M12 plug connector, 8-pin |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -20 … 55 °C |
| Order Number: | 098941 |
| Item designation: | CES-AR-C01-AH-SA |
| Gross weight: | 0,19kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Secured Switch-off Distance Sar: | max. 45 mm(for surface mounting) |
| Rated insulation voltage Ui: | 75 V(Tested up to 75 V by employers’ liability insurance association) |
| Rated impulse voltage Uimp: | 1.5 kV |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Safety Class: | III |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Switching frequency: | max. 1 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
| Global Trade Item Number (GTIN): | 4047048005433 |
| Switching hysteresis: | 1 … 3 mm(for surface mounting) |
| Repeat Accuracy R: | 10 % |
| Off-state Current Ir: | max. 0.25 mA |
| Test Pulse Duration: | max. 1 ms |
| Discrepancy time: | max. 10 ms |
| Risk time according to EN 60947-5-3: | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: | max. 5 ms |
| Ready Delay: | 10 s |
| Notices For UL Approval: | Operation only with UL Class 2 power supply or equivalent measures |
| Rated Conditional Short-circuit Current: | 100 A |
| Mounting distance: | min. 40 mm |
| Switch-on Distance: | 19 mm(for surface mounting) |
| Secured switching distance sao: | min. 10 mm(for surface mounting) |
