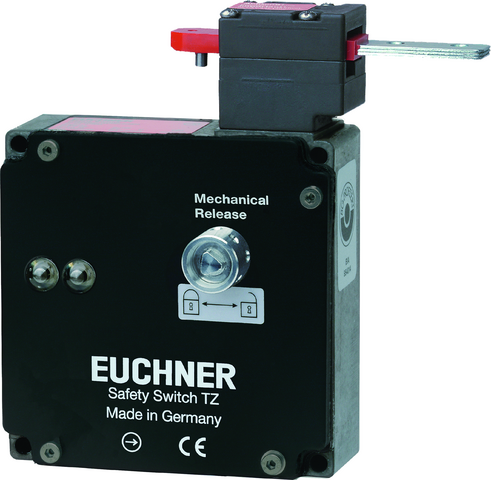

Euchner 098717E | TZ1RB024MVAB-C2159 : Safety Switch
The TZ1RB024MVAB-C2159 safety switch offers enhanced protection and reliability for industrial applications, ensuring compliance with safety standards.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG(> 70 °C => 2A gG) |
thermal rated current Ith: | 4 A(>70 °C =>2 A) |
Approach speed: | max. 20 m/min |
Actuating force: | 35 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Slow-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -25 … +80 °C |
Item designation: | TZ1RB024MVAB-C2159 |
Gross weight: | 1,229kg |
ECLASS: | 27-27-26-03 Safety switch with guard control |
Overtravel: | 4 mm |
Locking force FZh: | 1500 N |
Guard locking principle: | Closed-circuit current principle |
LED Display: | Operating voltage corresponds to the solenoid voltage(2 LEDs; green, red) |
Number of door position NO contacts: | 1 |
Number of door position positively driven contacts: | 3 |
Extraction Force: | 30 N |
Actuation frequency: | max. 1200 1/h |
Insertion Depth: | 52 mm |
Retention Force: | 10 N |
Locking force Fmax: | 2000 N |
Power consumption: | 10 W |
Solenoid Duty Cycle: | 100 % |
Number of guard lock monitoring positively driven contacts: | 2 |
Number of guard lock monitoring NO contacts: | 2 |
Lid: | black |
Product Number | Variant Description |
---|---|
TZ1RB024MVAB-C2159 : Safety Switch | TZ1RB024MVAB : Safety Switch |
TZ1RB024MVAB-C2159 : Safety Switch | TZ1LB024MVAB-C2159 : Safety Switch |
TZ1RB024MVAB-C2159 : Safety Switch | TZ1RB024MVAB-C2288 : Safety Switch |
TZ1RB024MVAB-C2159 : Safety Switch | TZ1LB024MVAB-C2288 : Safety Switch |
TZ1RB024MVAB-C2159 : Safety Switch | TZ1RB024MVAB-C2472 : Safety Switch |
TZ1RB024MVAB-C2159 : Safety Switch | TZ1LB024MVAB-C2472 : Safety Switch |
