| Rated insulation voltage Ui: |
50 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
4A gG |
| thermal rated current Ith: |
4 A |
| Approach speed: |
max. 20 m/min |
| Actuating force: |
35 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP65 |
| Ambient temperature: |
-20 … +55 °C |
| Item designation: |

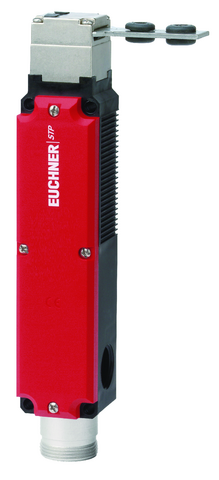

STP3A-4131A024-10C-DCX |
| Gross weight: |
0,608kg |
| ECLASS: |
27-27-26-03 Safety switch with guard control |
| Overtravel: |
5 mm |
| Locking force FZh: |
2000 N |
| Guard locking principle: |
Closed-circuit current principle |
| Approach direction: |
A |
| Number of door position NO contacts: |
1 |
| Extraction Force: |
30 N |
| Actuation frequency: |
max. 1200 1/h |
| Insertion Depth: |
24.5 mm |
| Retention Force: |
20 N |
| Locking force Fmax: |
2500 N |
| Power consumption: |
8 W |
| Solenoid Duty Cycle: |
100 % |
| Number of guard lock monitoring positively driven contacts: |
2 |
| Number of guard lock monitoring NO contacts: |
1 |
