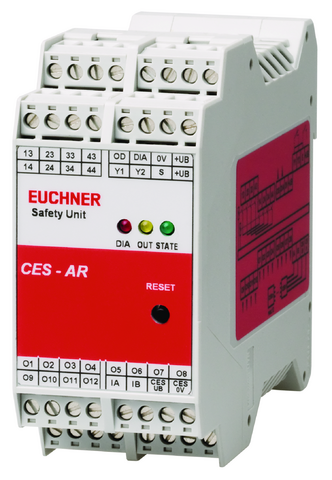

Euchner 098225E | CES-AR-AES-12 : Evaluation Unit
The CES-AR-AES-12 is an evaluation unit designed for testing and analyzing various electrical components and systems.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 2.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 4 kV |
Connection Type: | plug-in screw terminals, coded |
Degree of protection: | IP20 |
Item designation: | CES-AR-AES-12 |
Gross weight: | 0,326kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
Mounting type: | TH 35 mounting rail (EN IEC 60715) |
EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
Degree of contamination (external, according to EN 60947-1): | 2 |
Output Type: | Semiconductor output, p-switching, short circuit proof |
Ready Delay: | max. 8 s(After the operating voltage is switched on, the relay outputs are switched off and the monitoring outputs are set to LOW level during the ready delay. For visual indication of the delay, the green STATE LED flashes at a frequency of approx. 15 Hz.) |
Switching frequency: | 1 Hz(If the current load is>100 mA, a switching frequency of 0.1 Hz should not be exceeded as this will affect the mechanical life of the relay contacts.) |
Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
Output Current: | max. 20 mA |
Number of safety contacts: | 4 Relay with internally monitored contacts |
Performance Level: | PL e(This value is dependent on the number of switching cycles and the switching current.) |
Category: | 4(This value is dependent on the number of switching cycles and the switching current.) |
PFHD: | 1.5 x 10-8(This value is dependent on the number of switching cycles and the switching current.) |
Mission time: | 20 y(This value is dependent on the number of switching cycles and the switching current.) |
Dimensions: | 114 x 99 x 45 |
Current Via Feedback Loop: | 5 … 8 … 10 mA |
permissible resistance in feedback loop: | max. 600 ? |
Switching delay from state change: | max. 480 ms(Corresponds to the risk time according to EN 60947-5-3. This is the maximum OFF time for the safety outputs following removal of the actuator.) |
Number of LED displays: | 3 |
Number of monitoring outputs: | 12 |
Number of connectible safety switches: | max. 12 |
Safety Inputs: | 2 (for CES-AR switch chain) |
Duration of Actuation: | min. 250 ms |
Product Number | Variant Description |
---|---|
CES-AR-AES-12 : Evaluation Unit | (No others) |
