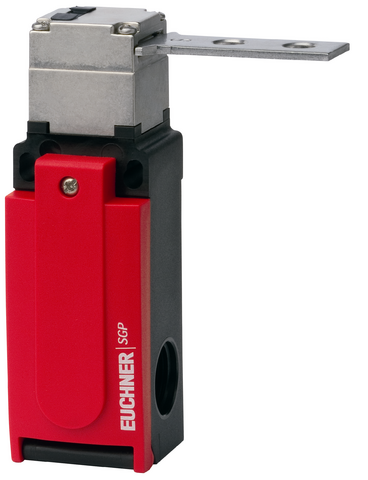

Euchner 097706E | SGP1E-2131A-M : Safety Switch
The Safety Switch is engineered to enhance safety in machinery operation by providing reliable shutdown capabilities.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG |
thermal rated current Ith: | 4 A |
Approach speed: | max. 20 m/min |
Actuating force: | 25 N |
Installation Orientation: | any |
Mechanical Life: | 2 x 10? |
Switching principle: | Slow-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -20 … +80 °C |
Item designation: | SGP1E-2131A-M |
Gross weight: | 0,231kg |
ECLASS: | 27-27-26-02 Safety switch with separate actuator (Type 2) |
Overtravel: | 5 mm |
Approach direction: | A |
Number of door position NO contacts: | 1 |
Number of door position positively driven contacts: | 3 |
Extraction Force: | 25 N |
Actuation frequency: | max. 6700 1/h |
Insertion Depth: | 24.5 mm |
Retention Force: | 10 N |
Product Number | Variant Description |
---|---|
SGP1E-2131A-M : Safety Switch | SGP1E-2121A-M : Safety Switch |
SGP1E-2131A-M : Safety Switch | SGP1E-3131A-M : Safety Switch |
