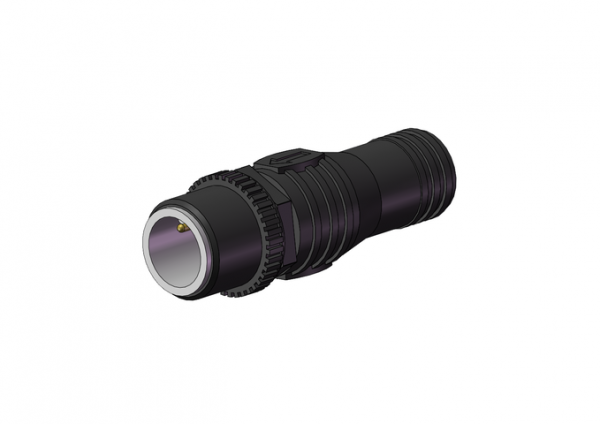

Euchner 097645E | AC-SP-SJ-097645 : Ces-Ar Strapping Plug
The Ces-Ar Strapping Plug is a versatile connector suitable for various strapping applications.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 300 V |
| Connection Type: | Male plug |
| Degree of protection: | IP65/IP67(Only in the screwed tight state with the relating mating components) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | AC-SP-A0-SJ-097645 |
| Gross weight: | 0,014kg |
| Rated voltage: | 60 V |
| Rated surge voltage according to IEC 60664-1: | 1500 V |
| Contact Resistance: | ?5 m? |
| Degree of contamination according to EN 60664-1: | 3 |
| Type Specification: | DIN EN 61076-2-101 |
| Cable Outlet: | straight |
| Number of pins: | 3(connection compatible with 5-pin female plug) |
| Plug lock: | Screw terminal |
| Insertion Cycles: | 100 |
| Product Number | Variant Description |
|---|---|
| AC-SP-SJ-097645 : Ces-Ar Strapping Plug | (No others) |
