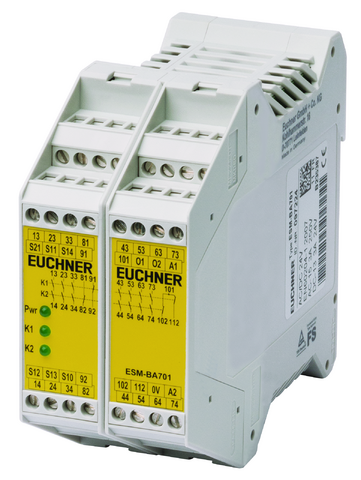

Euchner 097224E | ESM-BA701 : Security Base Unit
$1,348.89
Explore the Euchner 097224E | ESM-BA701 : Security Base Unit. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 097224E |
| Output Current: | max.30 mA |
| Degree of protection: | IP20 |
| Ambient temperature: | -15 … 40 °C |
| Order Number: | 097224 |
| Item designation: | ESM-BA701 |
| Gross weight: | 0,405kg |
| Customs tariff number: | 85364110 |
| ECLASS: | 27-37-18-19 Device for monitoring of safety-related circuits |
| Rated insulation voltage Ui: | 250 V |
| Degree of contamination (external, according to EN 60947-1): | 2 |
| Switching current: | min.5 mAat 24V |
| Output voltage: | 24 V DC |
| Mission time: | 20 y(This value is dependent on the number of switching cycles and the switching current.) |
| Category: | 4(This value is dependent on the number of switching cycles and the switching current.) |
| Performance Level: | PL e(This value is dependent on the number of switching cycles and the switching current.) |
| PFHD: | 2.47 x 10-8(This value is dependent on the number of switching cycles and the switching current.) |
| Global Trade Item Number (GTIN): | 4047048006669 |
| Number of monitoring contacts: | 2 |
| Overvoltage category according to IEC EN 60664-1: | 3 |
| Number of safety contacts: | 7 |
| Contact material: | AgSnO2 |
| Mounting method: | Mounting rail 35mm according to DIN EN 60715 TH35 |
| Number of monitoring outputs: | 2 semiconductor outputs |
| Connection: | Connection terminals |
| Number of auxiliary contacts: | 4 |
| Connection Cross-section: | 0,14 … 2,5 mm²(Connection terminal (size)) |
| LED Indicator: | One operating voltage status display (Pwr), two status displays (green) for relays K1 and K2 |
| Cumulative current: | max.35 AFor all contacts(With a housing distance of 10mm. 20A closely spaced at 40°C) |
| In compliance with: | EN ISO 13849-12015 ; EN 620612005 + AC 2010 + A1 2013 + A2 2015; EN 50581 2012 (RoHS) |
