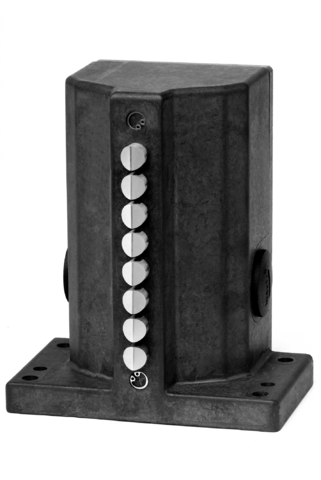

Euchner 097140E | RGBF06D12-514LE024GE-M : Multiple Limit Switch
The RGBF06D12-514LE024GE-M is a versatile multiple limit switch that provides reliable position sensing for industrial applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 4 kV |
Short circuit protection according to IEC 60269-1: | 6A gG |
thermal rated current Ith: | 10 A |
Approach speed: | 0.01 … 40 m/min |
Number of switching elements: | 6 |
Number of NO contacts: | 6 |
Number of positively driven contacts: | 6 |
Design: | upright, according to DIN 43697 |
Actuating element: | Chisel plunger |
Actuating force: | min. 30 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Snap-action switching contact(Contact closing time ?5, contact bounce time ?3 ms) |
Degree of protection: | IP67 |
Plunger spacing: | 12 mm |
Ambient temperature: | -5 … +80 °C |
B10D: | 2 x 10? |
Item designation: | RGBF06D12-514LE024GE-M |
Gross weight: | 1,2kg |
ECLASS: | 27-27-06-02 Multi-position switch |
