| Material: |
Plastic |
| Connection Type: |
M12 plug connector, 4-pin |
| Number of NO contacts: |
2 |
| Switching principle: |
Slow-action contact element |
| Ambient temperature: |
-5 … +50 °C |
| B10D: |
0.5 x 10? |
| Item designation: |

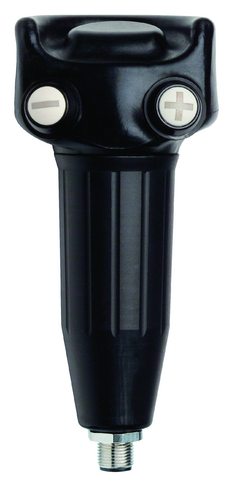

ZSB2B7CAS1 |
| Gross weight: |
0,223kg |
| ECLASS: |
27-37-12-38 Agreement switch |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Additional feature: |
2 pushbuttons (+ and -) |
| Switching characteristics: |
3-stage enabling switch |
| in compliance with: |
60947-5-8 |
| ASI operating current: |
max. 45 mA |
| AS-Interface protocol: |
ASi-3 |
| ASI data in: |
D0, D1 = door position (NO contact E1), D2,D3 = door position (NO contact E2) |
| AS-Interface slave type: |
ID-Code B, EA-Code 7 |
| ASI voltage: |
22.5 … 30 … 31.6 V |
| AS-Interface parameters: |
P0 = Plus pushbutton, P1 = Minus pushbutton |
