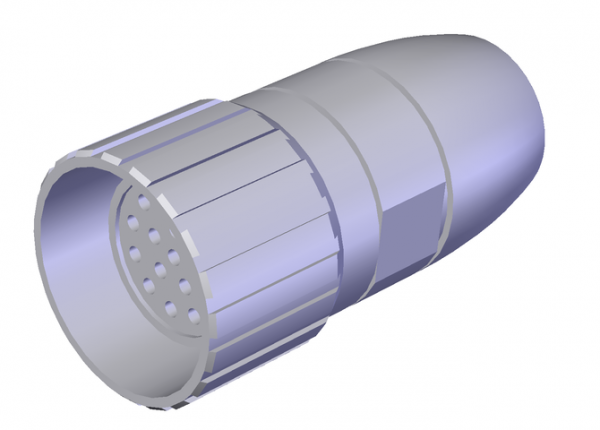

Euchner 096481E | STECKVERBINDER 17POL RC-17P1N8A80CP : Connector
The STECKVERBINDER 17POL RC-17P1N8A80CP is a reliable 17-pin connector suitable for robust electrical connections.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 0.56 mm² |
Degree of protection: | IP67 |
Ambient temperature: | -20 … +125 °C |
Item designation: | STECKVERBINDER 17POL RC-17P1N8A80CP |
Gross weight: | 0,08kg |
Rated voltage: | 150 V |
Cable Outlet: | straight |
Number of pins: | 17 |
Plug lock: | Screw connection |
Cable diameter: | max. 10 mm |
Plug connector designation: | RC17 |
Rated Current I: | 8000 mA(per contact at 25 °C) |
Screen Connection: | via housing connection |
Product Number | Variant Description |
---|---|
STECKVERBINDER 17POL RC-17P1N8A80CP : Connector | (No others) |
