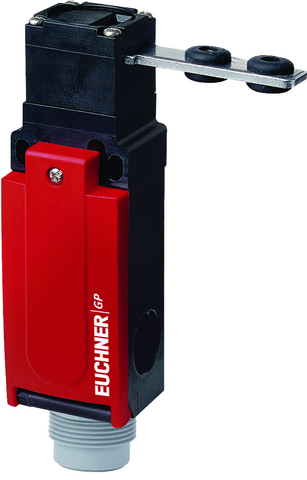

Euchner 096227E | GP2-2131ASR11 : Safety Switch

The GP2-2131ASR11 is a durable safety switch that adds an extra layer of protection by ensuring safe operation of machinery.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 50 V
    Rated impulse voltage Uimp: 1.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG(> 70 °C => 2A gG)
    thermal rated current Ith: 4 A(>70 °C =>2 A)
    Approach speed: max. 20 m/min
    Actuating force: 10 N
    Installation Orientation: any
    Mechanical Life: 2 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP65
    Ambient temperature: -20 … +80 °C
    Item designation: GP2-2131ASR11
    Gross weight: 0,216kg
    ECLASS: 27-27-26-02 Safety switch with separate actuator (Type 2)
    Approach direction: A
    Number of door position NO contacts: 1
    Number of door position positively driven contacts: 3
    Extraction Force: 20 N
    Actuation frequency: max. 6700 1/h
    Retention Force: 2 N
    Horizontal Insertion Depth: 28 mm
    Vertical insertion depth: 29.5 mm
    Horizontal Overtravel: 7 mm
    Vertical overtravel: 7 mm
    Product Number Variant Description
    GP2-2131ASR11 : Safety Switch (No others)
