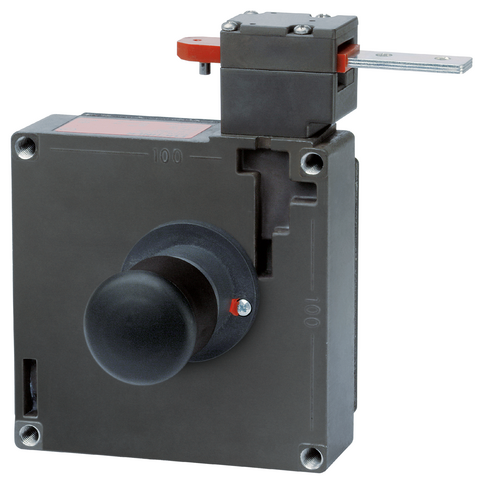

Euchner 095992E | TZ1LE110MVAB-C2082 : Safety Switch
$2,994.44
Explore the Euchner 095992E | TZ1LE110MVAB-C2082 : Safety Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 095992E |
| LED Display: | Operating voltage corresponds to the solenoid voltage(2 LEDs; green, red) |
| Installation Orientation: | any |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP65 |
| Ambient temperature: | -25 … 80 °C |
| Order Number: | 095992 |
| Item designation: | TZ1LE110MVAB-C2082 |
| Gross weight: | 1,352kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-26-03 Safety switch with guard control |
| Mechanical Life: | 1 x 10? |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Fuse: | max. 4 A gG(>70 °C =>2 A gG) |
| Locking force FZh: | 1500 N |
| Guard locking principle: | Closed-circuit current principle |
| Connection Cross Section: | 0.34 … 1.5 mm² |
| thermal rated current Ith: | 4 A(>70 °C =>2 A) |
| Approach Speed: | max. 20 m/min |
| Number of door position positively driven contacts: | 3 |
| Extraction Force: | 30 N |
| Actuation frequency: | max. 1200 1/h |
| Actuating force: | 35 N |
| Insertion Depth: | 52 mm |
| Retention Force: | 10 N |
| Switching principle: | Slow-action switching contact |
| Overtravel: | 4 mm |
| Power consumption: | 10 W |
| Solenoid Duty Cycle: | 100 % |
| Number of door position NO contacts: | 1 |
| Number of guard lock monitoring NO contacts: | 2 |
| Number of guard lock monitoring positively driven contacts: | 2 |
| Lid: | black |
| Locking force Fmax: | 2000 N |
