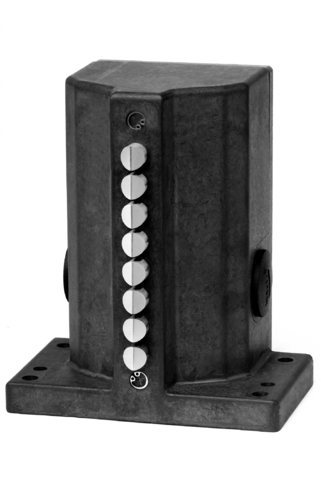

Euchner 095522E | RGBF02B12-514-M : Multiple Limit Switch
$1,311.11
Explore the Euchner 095522E | RGBF02B12-514-M : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 095522E |
| Installation Orientation: | any |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -5 … 80 °C |
| Order Number: | 095522 |
| Item designation: | RGBF02B12-514-M |
| Gross weight: | 0,724kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-06-02 Multi-position switch |
| Mechanical Life: | 1 x 10? |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 4 kV |
| Fuse: | max. 6 A gG |
| Connection Cross Section: | 0.34 … 1.5 mm² |
| thermal rated current Ith: | 10 A |
| Approach Speed: | 0.01 … 120 m/min |
| Design: | upright, according to DIN 43697 |
| Actuating force: | min. 30 N |
| Switching principle: | Snap-action switching contact(Contact closing time<5 ms contact bounce time<3 ms) |
| B10D: | 2 x 10? |
| Number of switching elements: | 2 |
| Number of NO contacts: | 2 |
| Number of positively driven contacts: | 2 |
| Plunger spacing: | 12 mm |
