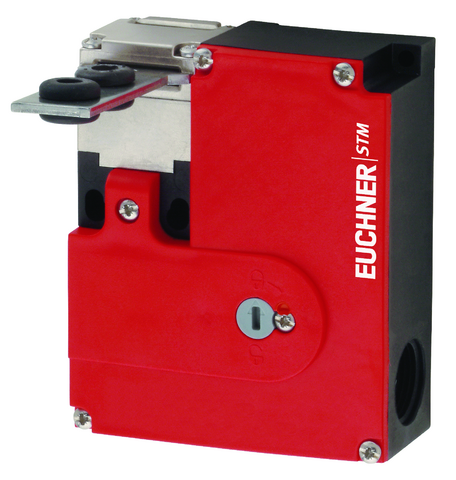

Euchner 095396E | STM1A-222B024-M : Safety Switch
The STM1A-222B024-M is a safety switch that provides reliable operation and safety in automated systems.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 4A gG |
| thermal rated current Ith: | 4 A |
| Approach speed: | max. 20 m/min |
| Actuating force: | 35 N |
| Installation Orientation: | any |
| Mechanical Life: | 2 x 10? |
| Switching principle: | Slow-action switching contact |
| Degree of protection: | IP67 |
| Ambient temperature: | -20 … +55 °C |
| Item designation: | STM1A-222B024-M |
| Gross weight: | 0,529kg |
| ECLASS: | 27-27-26-03 Safety switch with guard control |
| Overtravel: | 5 mm |
| Locking force FZh: | 1500 N |
| Guard locking principle: | Closed-circuit current principle |
| Approach direction: | B |
| Number of door position positively driven contacts: | 2 |
| Extraction Force: | 30 N |
| Actuation frequency: | max. 1200 1/h |
| Insertion Depth: | 24.5 mm |
| Retention Force: | 20 N |
| Locking force Fmax: | 2000 N |
| Power consumption: | 6 W |
| Solenoid Duty Cycle: | 100 % |
| Number of guard lock monitoring positively driven contacts: | 1 |
